MOPIC 3D · Background Essentials
Essential Background to Know
Core concepts worth understanding before you explore MOPIC's glasses-free 3D.
1Four Elements for Glasses-Free 3D Viewing
Experiencing MOPIC 3D requires all of the following.
Content
The 3D content to be shown (live camera footage, videos, games, and more).
HW
The optical system that delivers glasses-free 3D (Display + 3D Filter + Eye Tracking Camera).
SW
Software that converts, renders, and manages 3D imagery.
PC / App Board
The system board or computing device that runs the SW and processes the content.
2Two Principles Behind the 3D Effect
Depth is created using the viewer's two eyes and their movement.

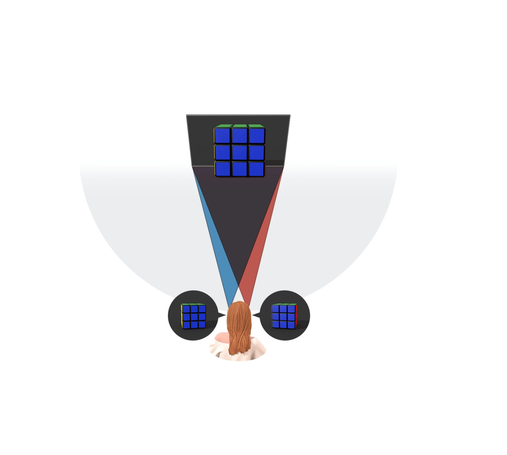

Binocular Disparity
Each eye sees the scene from a slightly different position, which lets us perceive depth.

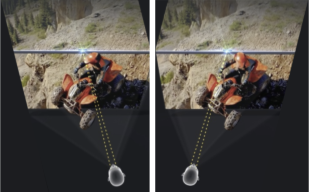

Motion Parallax
As you move, near and far objects appear to shift differently, creating a sense of distance.

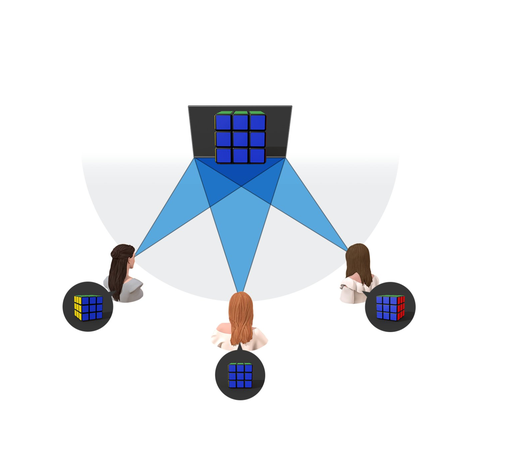

MOPIC Solution
MOPIC's glasses-free 3D solution delivers a different viewpoint image to each eye and, using Eye Tracking, adjusts the image in real time as the viewer's position changes — recreating this sense of depth naturally.
What (B) and (B,M) Mean
Throughout these documents, notations such as (B) or (B,M) appear next to content types. They indicate which 3D effect that content delivers.
| Notation | Meaning |
|---|---|
| B | Binocular Disparity Showing each eye a different image so that depth is perceived. |
| M | Motion Parallax Depth perceived as the viewpoint shifts with the movement of the viewer or object. |
